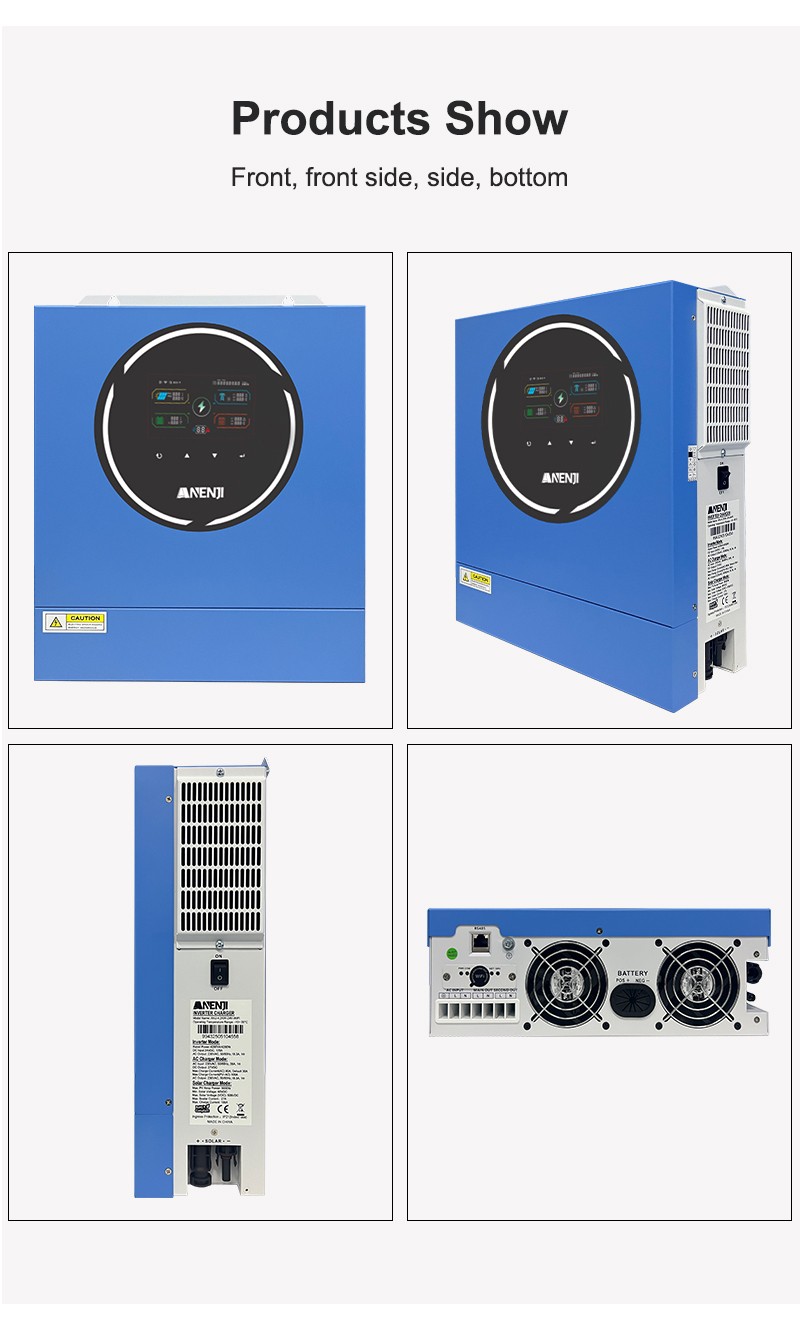

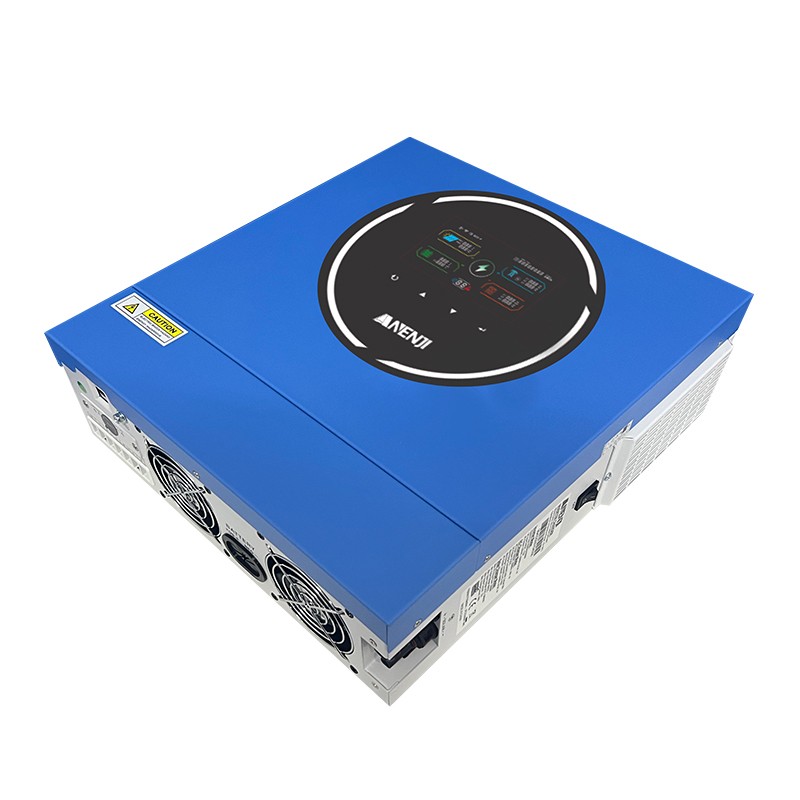

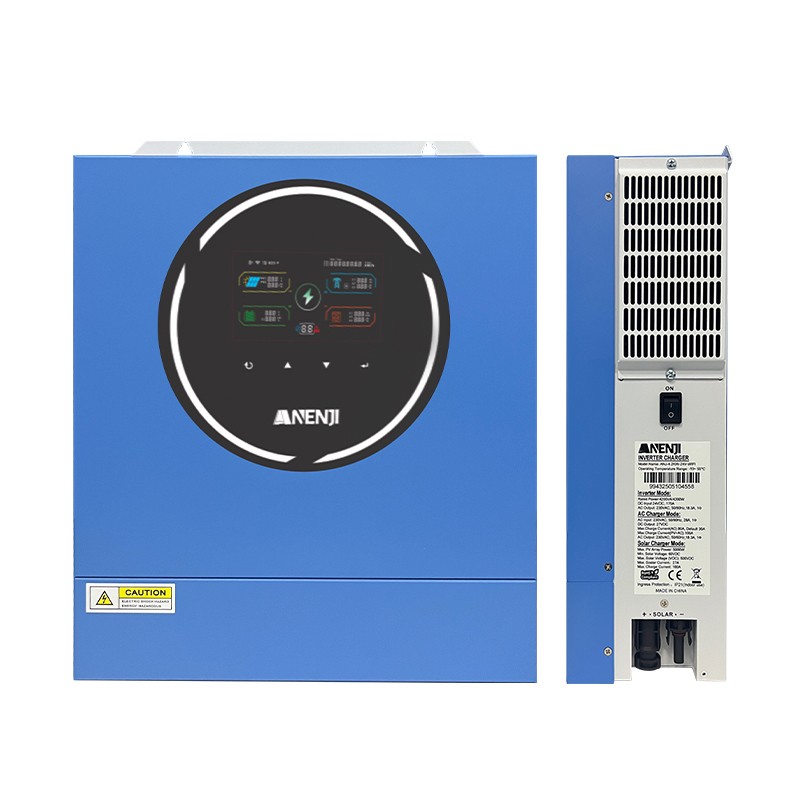

5KW 48V Solar Inverter Hybrid On Off Grid 220V 230V MPPT 100A 500V Charger WIFI
USD 554.68 USD

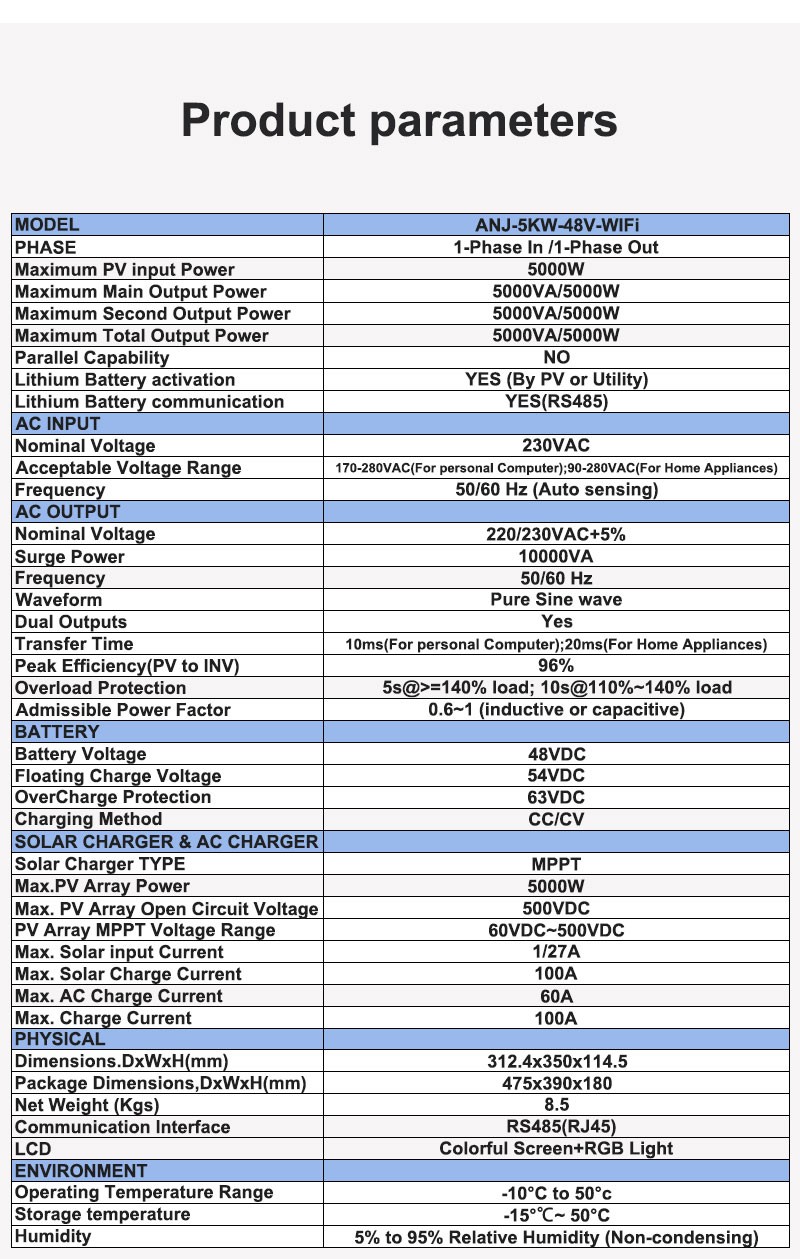

Specifications
| Model | ANJ-5KW-48V-WIFI |
| Nominal Power | 5KVA/5KW |
| Input Voltage | 230VAC |
| Frequency Range | 50/60 Hz(Auto sensing) |
| Overvoltage Protection | 7000VA |
| Efficiency (peak) | 96% |

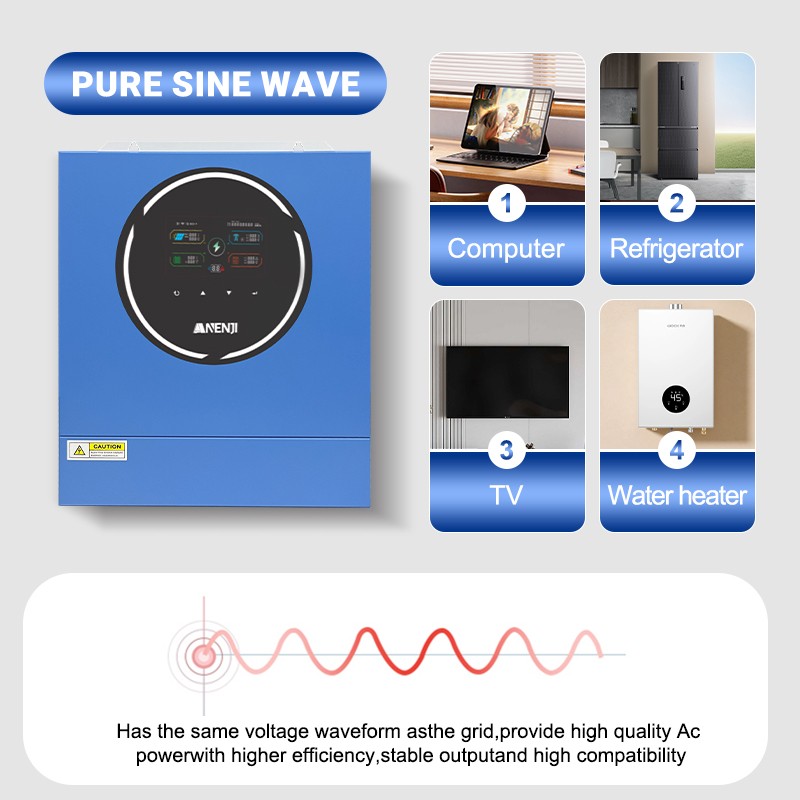

| Waveform | Pure sine wave |
| Battery Voltage | 48VDC |
| Floating Charging Voltage | 54VDC |
| Overload Protection | 63VDC |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| MPPT Range At Operating Voltage | 60-500VDC |
| Maximum Solar Charging Current | 100A |
| Marke | ANENJI |
| Maximum PV Array Performance | 5000W |
| Lithium Battery Activation | YES |
| Lithim Battery Communication | YES(RS485) |
| Max.Solar Charge Current | 100A |
| Max.Solar Input Current | 27A |
| Dimensions,D X Wx H(mm) | 312.4*350*114.5 |
| Net Weight(Kg) | 8.5 |
| Brand | Anenji |
| Type | Charger/Inverter |

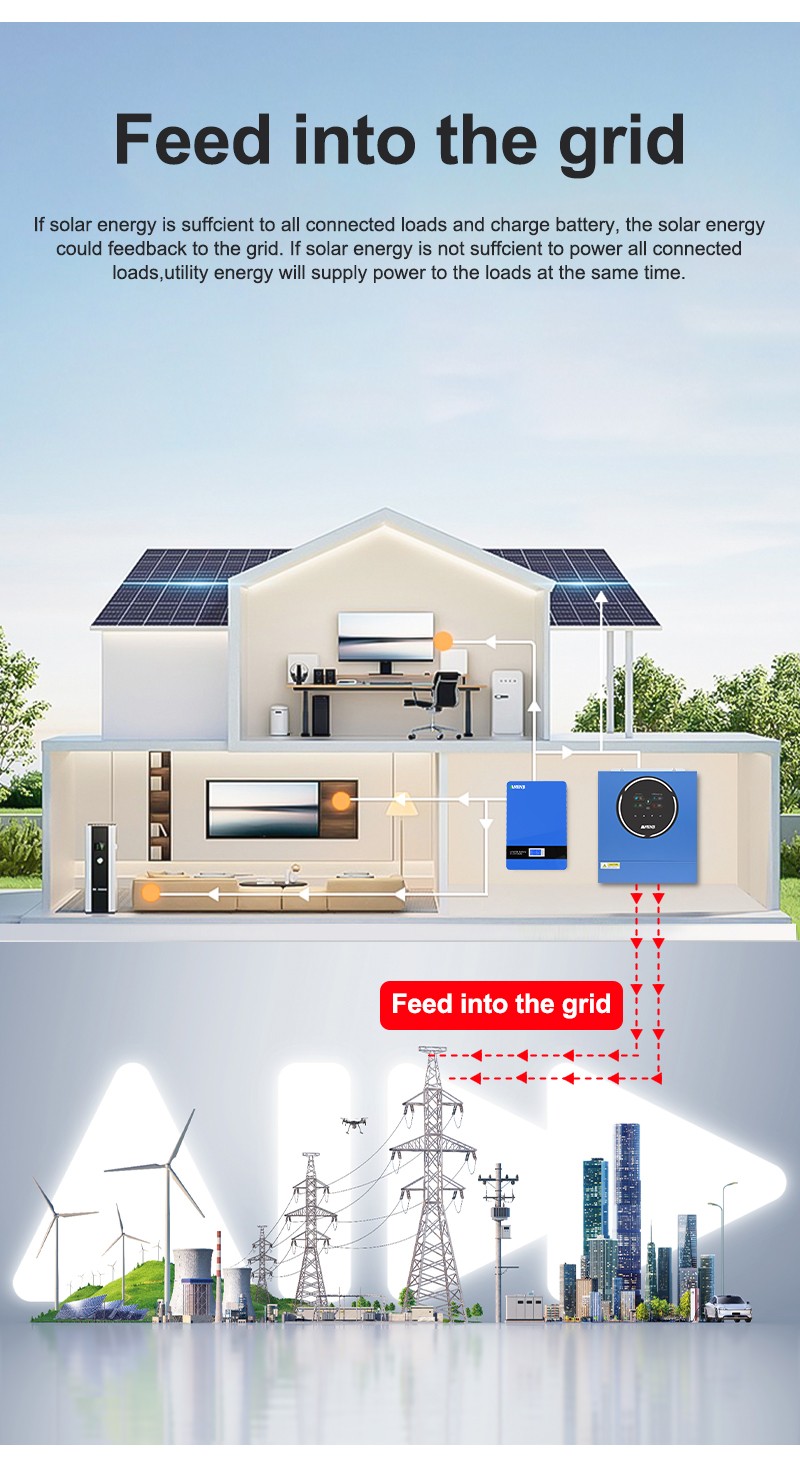

| System Configuration | Hybrid |
| Current Type | AC/DC |
| Voltage | 48V DC- 230V AC |
| Power | 5000W |
| Application | Home/Garden |
| Power Source | Solar |
| Color | Blue |
| Connector Type | MC4 |
| Maximum Input Voltage | Greater Than 200 V |
| Wattage | 5000-5999 W |

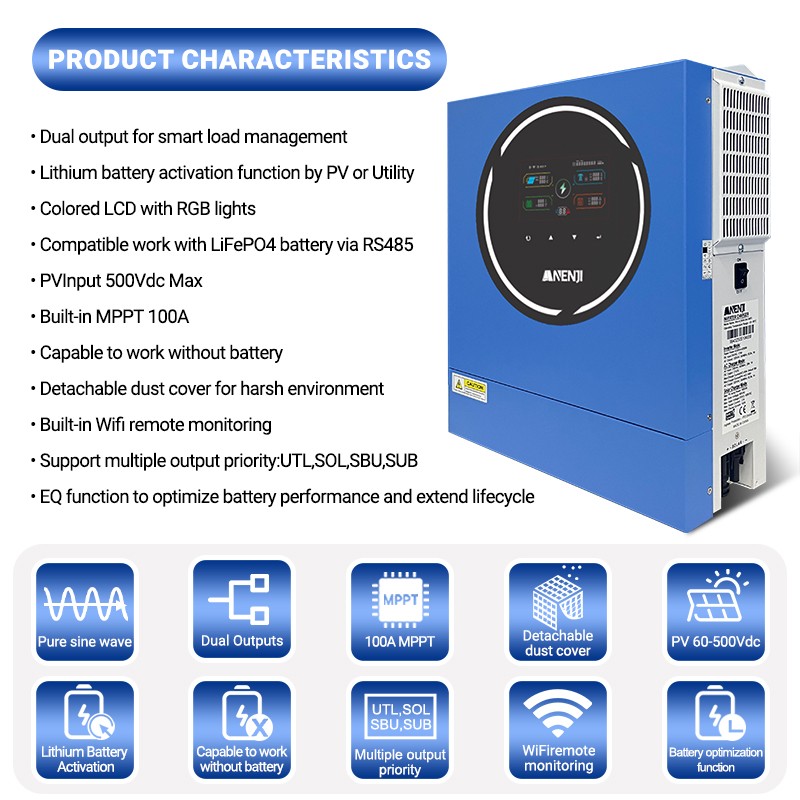

Built-in Max 100A MPPT Solar Charging;. Pure Sine Wave Inverter;. WiFi remote monitoring;. We have a professional solar inverter engineering team with more than 10 years of solar inverter R&D experience.
