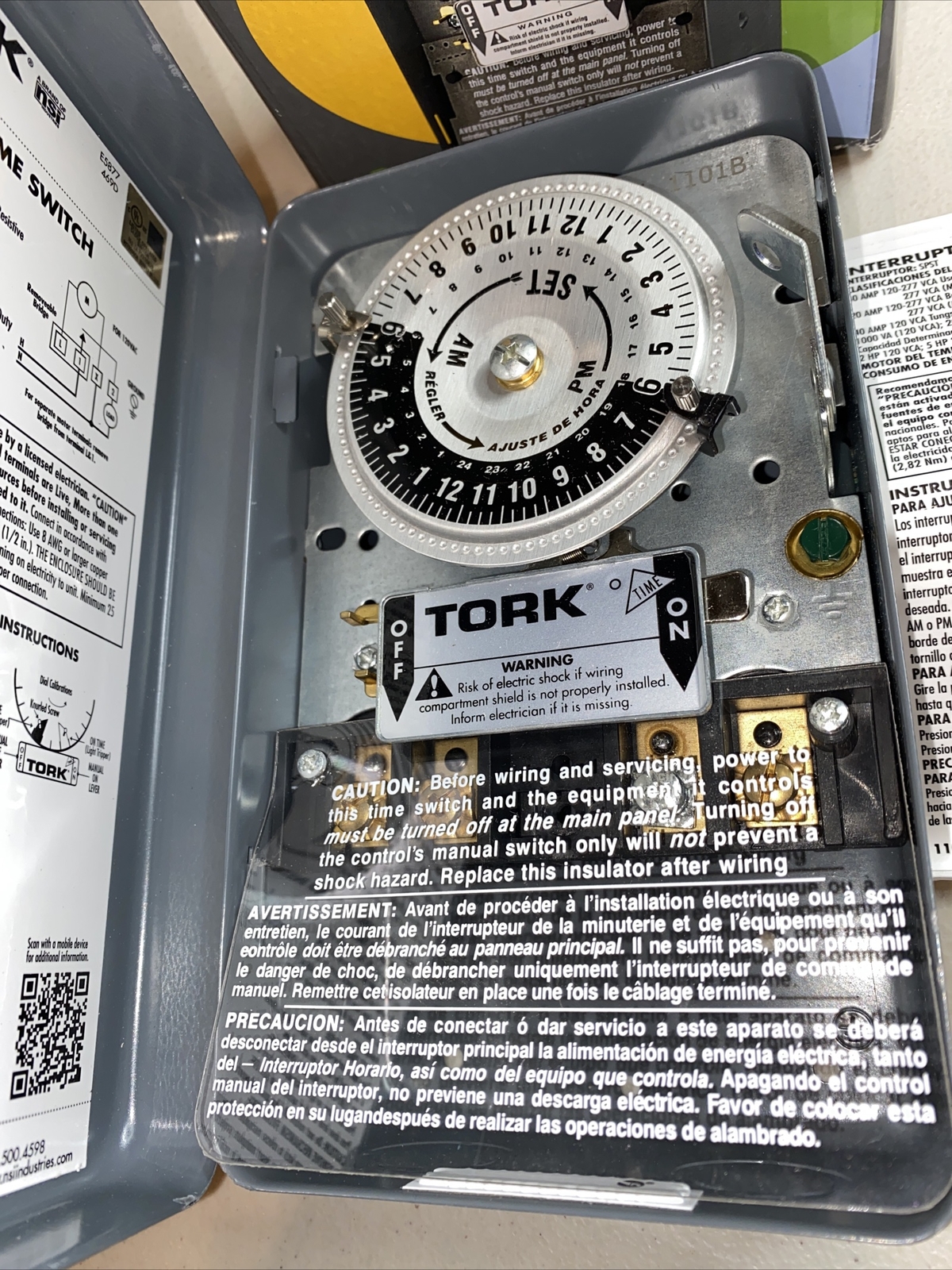

TORK Mechanical Time Switch 40 Amp 1 Channel 24 Hours Indoor for Same Time Day
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| EAN | Does not apply |
| UPC | 0786261100641 |
| Application | Light Control |
| Finish | Gray |
| Smart Home Protocol | N/A |
| MPN | 1101B |
| Item Length | 4.68 in |
| Suitable For | Wall |
| Port Type | Power |
| Control Style | Dial |
| Decorative Style | Traditional |
| Item Height | 7.93 in |
| Item Width | 2.93 in |
| Color | Gray |
| Orientation | Vertical |
| Brand | NSI |
| Operation Method | Timer |
| Interruption Type | Switch |
| Switch Style | Rotary |
| Smart Home Compatibility | Universal |
| Voltage | 120 |
| Features | Timer |
| Box Shape | Rectangular |
| Room | Basement |
| Mounting Style | Wall |
| Maximum Amperage | 40 A |
| Current Rating | 31-40 A |
| Material | Metal |
| Type | Timer Wall Switch |
| Model | 1101B |
| Resistance Properties | Dustproof |
TORK Mechanical Time Switch 40 Amp 1 Channel 24 Hours Indoor for Same Time Day. THIS IS A BRAND NEW ITEM OPEN PACKAGE JUST TO TAKE PICTURES This 24-hour, SPST Mechanical Time Switch is perfect for lighting, pumps, signs, air conditioning, water heaters and fans applications. The Automatic on/off control when operation is required at the same time every day makes it end user friendly. This basic timer will cover many of your single-phase needs. Scheduling is minimum on is setting 20 minutes with a minimum off setting of 75 minutes, dial accommodates up to 12 pairs of trippers P47, it features manual override until the next regularly scheduled on or off automatic operation resumes Input-voltage of 120 VAC 60 Hz and output contacts is SPST with timing accuracy of line frequency, terminal range of #8 - #14 AWG Lockable hasp, metal indoor NEMA 1 enclosure Operating temperature range -40 to 165F (-40 to +74C) Power consumption of 3-Watt maximum Product Depth (in.): 3.5 Product Width (in.): 8.75 Amperage (amps): 40 Color Family: Gray Color/Finish: Metal Indoor NEMA 1 enclosure Compatible Bulb Type: Incandescent,LED Electrical Features: Programmable Electrical Product Type: Timer Indoor/Outdoor: Indoor Maximum time setting (min.): 75 Mounting Type: Surface Mount Rating: General Purpose Returnable: 30-Day Style: Dial Timer Type: Mechanical Voltage: 120 volt Wattage (watts): 4800 Certifications and Listings: 1-UL Listed,2-UL Recognized,3-UL Classified,4-UL Certified,CSA Certified,CSA Listed,cUL Listed Manufacturer Warranty: 1 YEAR
