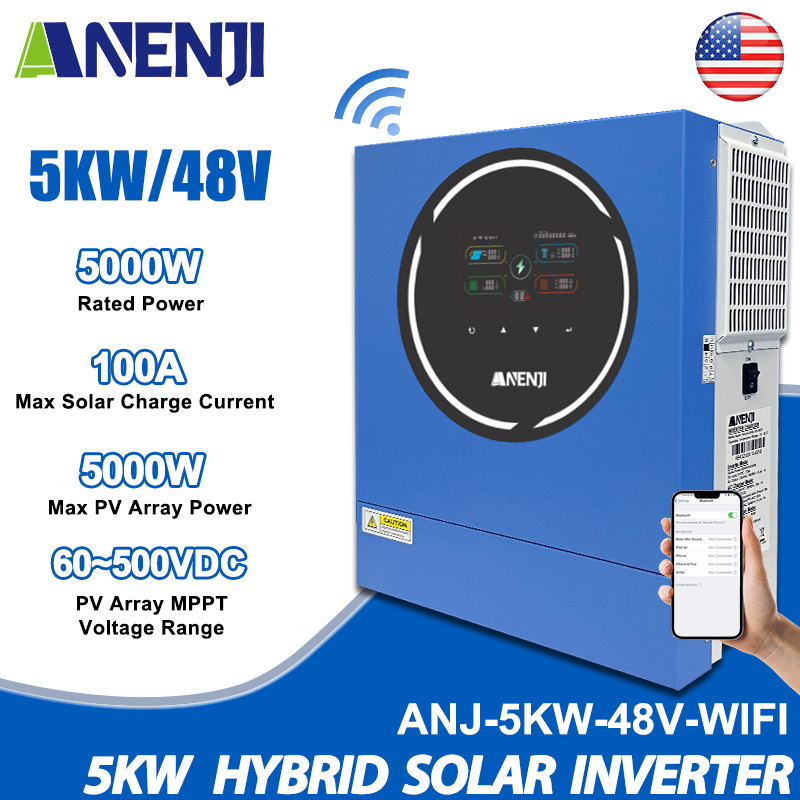

5KW 48V Hybrid Solar Inverter On-Grid+Off-Grid MPPT 100A Charger Controller WIFI

USD 324.80 USD

SKU: TG3ATN78

Brand: ANENJI

GTIN: Does not apply

Condition: New

Tags: 1-Phase In /1-Phase Qut 1/27A 10000VA 100A 220/230VAC+5% 230VAC 312.4x350x114.5 48V 48VDC 50/60 Hz(Auto sensing) 5000VA/5000W 5000W 500Vdc 54VDC 60A 63VDC 8.5 ANENJI ANJ-5KW-48V-WIFI CC/CV Charger/Inverter Home/Garden Hybrid Max.PV Array Power MPPT Pure Sine Wave RS485(RJ45)/RS232(DB9) Sense Solar Yes YES ( By PV or Utility) Yes(RS485)

Categories: Electrical Supplies

Specifications

Brand	ANENJI
Type	Charger/Inverter
Application	Home/Garden
Voltage	48V
Model	ANJ-5KW-48V-WIFI
Inverter Technology	Hybrid
PHASE	1-Phase In /1-Phase Qut
Maximum PV Input Power	5000W
Maximum Main Output Power	5000VA/5000W
Maximum Second Output Power	5000VA/5000W
Maximum Total Output Power	5000VA/5000W
Lithium Battery Activation	YES (By PV or Utility)
Lithium Battery Communication	YES(RS485)
Nominal Input Voltage	230VAC
Frequency	50/60 Hz(Auto sensing)
Nominal Output Voltage	220/230VAC+5%
Surge Power	10000VA
Waveform	Pure Sine wave
Dual Outputs	Yes
Battery Voltage	48VDC
Floating Charge Voltage	54VDC
OverCharge Protection	63VDC
Charging Method	CC/CV
Solar Charger TYPE	MPPT
Max.PV Array Power	Max.PV Array Power
Max. PV Array Open Circuit Voltage	500VDC
Max. Solar Input Current	1/27A
Max. Solar Charge Current	100A
Max. AC Charge Current	60A
Max.Charge Current	100A
Dimensions.DxWxH(mm)	312.4x350x114.5
Net Weight (Kgs)	8.5
Communication Interface	RS485(RJ45)/RS232(DB9)

Built-in MPPT 100A. We have a professional solar inverter engineering team with more than 10 years of solar inverter R&D experience. We are committed to providing smart solar energy for areas where needs electricity.
